5% opening rate sunscreen roller blind PVC
This URB60 series sunscreen fabric has a knitted base fabric sunscreen fabric that is preferably a warp knit structure, preferably at least a two-bar structure, although it can be made of three bars, four bars, etc., depending on the complexity required by the pattern . This fabric is made of 30% Fiberglass,70% PVC. It is very suitable for the houses we live in, office sunscreen roller blinds, hotel sunscreen roller blinds, airport sunscreen roller blinds, kitchen sunscreen roller blinds, etc. Different opening densities have different effects.
5% opening rate sunscreen roller blind PVC
The fabric is preferably constructed to have an opening of about 1% to about 15%, especially 5% of the screen (defined as the amount of open space relative to the entire fabric area). Those of ordinary skill in the art will readily understand. , You can choose the degree of opening to adjust the amount of light you want to let through, the amount of occlusion you want. For example, sunscreen designed for windows on the sun-facing side of a building may be designed to be less open, while the dark side of the building may be designed to be more open to allow more natural light to enter the room.
| Specification | Description |
| Composition: | 30% Fiberglass,70% PVC |
| Weave Construction: | sunscreen roller blinds |
| Width: | 2.0m, 2.5m, 2.8m, 3.0m |
| Weight: | 410gr/m² ± 10% |
| Thickness: | 0.58mm ± 10% |
| Color Fastness: | Fabric is UV inhibitor-treated. Fabric with a 5+ result offers excellent resistance to the fading effect of light. |
| VOC Test: | ASTM: D5116 |
| Fabric Warranty: | 5 years (internal use only) |
| Care Instructions: | Do not allow dust to accumulate. Gently vacuum with appropriate attachment. Do not dry clean. Test in an inconspicuous area with a mild detergent solution before spot cleaning. When spot cleaning does not allow that area to become fully wet, use damp cloth only. |
Parameters:
Application: Roller blinds, Roman blinds and Panel Window Blinds
Technical Data:
•Composition (TR): 30% Fiberglass,70% PVC
•Width: 2.5m,2.8m,3.0m
•Openness Factor：5%
•Light Fastness: 5-6 (Blue Scale) Tested to ISO 105-B02:2014
•Nominal weight: 410±5% gsm (TR)
•Nominal thickness: 0.58mm (TR)
•Fire Classification: California U.S. Title 19 (small scale), NFPA 701-2010 TM#1 (small scale), BS 5867 2008 Part 2 Type B Performance.
Performance:
•Opacity: Blackout (Complies to AS 2663.3.1999)
2. Certification
1. Packing:
Length per roll: 30m/30 yards
Inner packing: hardboard tube and kraft paper/ poly bag
Outer packing: hardboard tube and tube cover
Container Loading:
Shipping Method:
Air Shipment & Sea Shipment
Quality Assurance & Warranty
The final inspection would be made before shipment.
1. Inspect the flatness

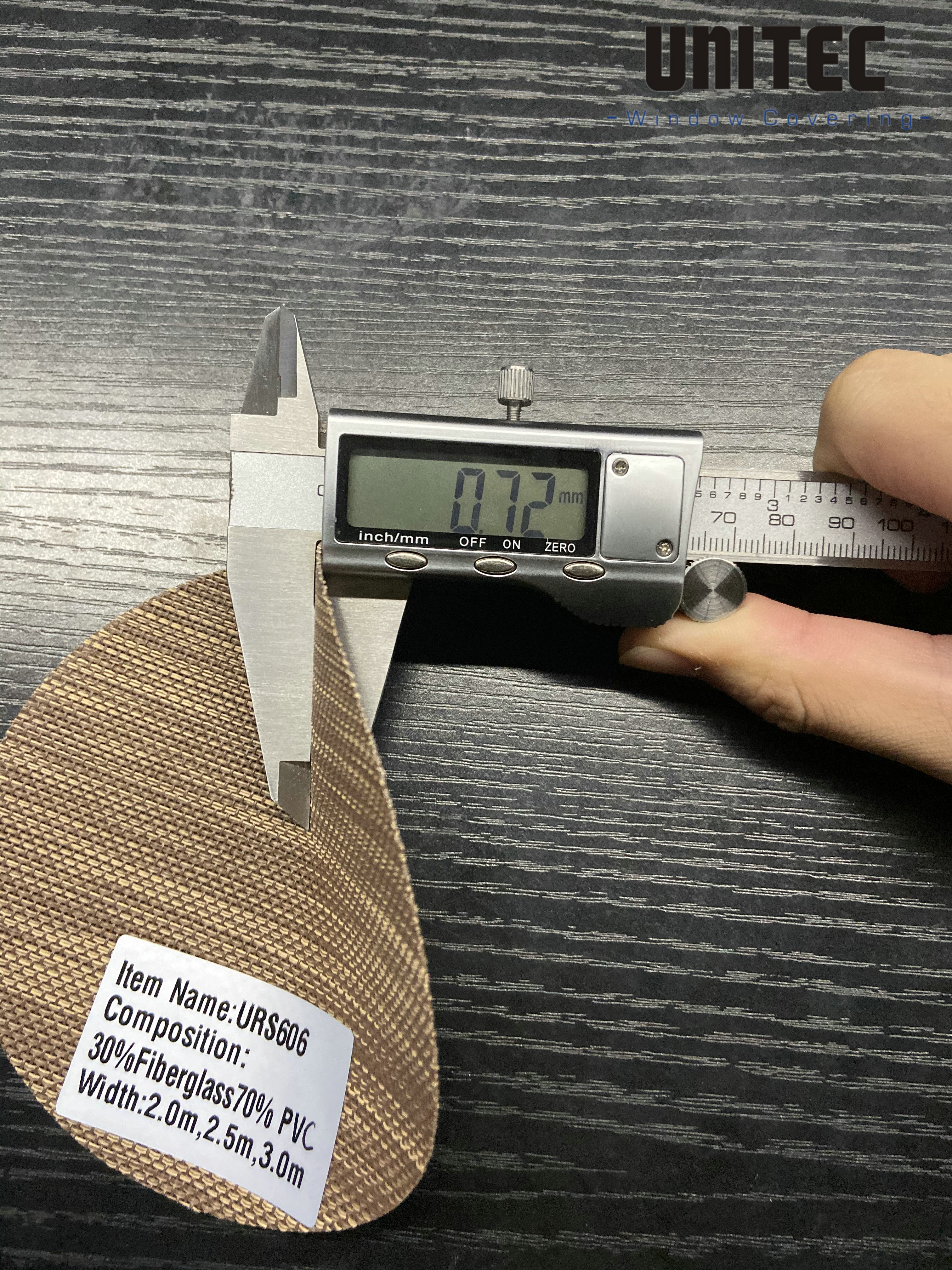

2. Fabric Thickness
3. Fabric Weight
Inspection Report made by QC team
Warranty：
UNITEC has passed the certification of ISO9001-2008, SGS, CE, INTERTEK and a strict QC system including IQC (Income Quality Control), IPQC (In Process Quality Control), FQC（Final Quality Control) and QA (Quality Assurance). Our mission at UNITEC is to deliver the highest quality of roller blind fabrics, this is why we provide our customers with the security of quality warranty on all of the products. To protect you even further, UNITEC now offers one extra year warranty, in addition to the standard 4-year product warranty, on a selection of products to ensure continuous peace of mind. Don’t miss out! Place your order to get the warranty now!
